ESD Products

ESD Products
ESD Products
Product Code : 25
Product Description

We are one of the leading organizations, that are involved in offering a broad range of ESD Products. These portable, compact and battery operated devices installed to indicate the presence of input static electricity. Offered products are acclaimed by our clients for their high efficiency, low maintenance, prolonged functional life and high operational accuracy. These ESD Products are stringently tested by our professionals to ensure their flawlessness and quality as per the industry laid norms.

Other details:

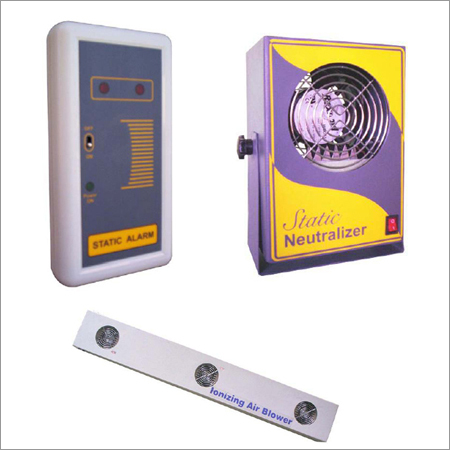

STATIC ALARM (Model: SA-01)
The Static Alarm SA-01 is a portable, battery-operated instrument, incorporating the latest technology, to indicate the presence of approaching static electricity. It is designed to provide a quick and convenient method of locating static charges. It is primarily intended for use in static-safe handling areas, as an early warning system to alert the personnel nearby. The hazard may be in the form of personnel who are generating static or personnel who may be holding a charged object without observing the standard safety procedures for handling static sensitive devices. The instrument incorporates a unique selfresetting feature and therefore requires no manual adjustments or zeroing. It can be kept 'ON' for continuous monitoring of critical static-safe areas.

Operation
A static charge on any object produces an electric field whose strength is an inverse function of the distance from the charge. A given magnitude of charge always produces a given field strength at a given distance. The unique sensor of the instrument actually responds to this electric field. However, more specifically, it senses only changes in the electric field, so to detect a charge there should be relative motion between the instrument and the charged body.

SPECIFICATIONS

Detection method charge coupling by field Interception
Detection sensitivity +/- >100V
Range selection Auto ranging and auto resetting
Indication LED visual Indication with Audible alarm
Power supply 9V Battery
Dimensions 135 x 70 x 25 mm
Weight Approximately 125G (with battery)

STATIC NEUTRALIZER (Model: SNP-01)
The generation and accumulation of unwanted electrostatic charges, both surface and airborne, poses a serious problem in various industries and laboratories. For instance, static charges can create havoc with sensitive equipment and electronic components.  This Bench Top Instrument is designed to neutralize your ESD work-station or ESD protected area with a stream of ionized air. It does what Wrist straps, conductive mats & ESD Laminates cannot do i.e., remove static charges from non conductive objects and surfaces. The Static neutralizer is portable and uses a small fan to produce airflow. High voltages are generated out of the supply line, HV voltage is applied to stainless steel ion emitter points. These points produce intense alternating polarities, ionizing the air instantly from the fan airflow. The Static neutralizer is designed for when handling sensitive electronic components where electrostatic discharge is a problem. The unit can also be used where static electricity causes problems such as; attraction of drift to product, misalignment of small parts due to electrostatic “jumping” and undesirable adhesion of plastic films due to electrostatic charge.

Specifications
Air flow 1.8 cu m/min
Noise Level 45dba (at 1 m)
Power Supply 210V – 250V AC/50Hz
Ionization Voltage +/- 6KV
Un Balance Voltage < +/- 100V
Construction Power coated MS cabinet
Dimensions 230 x 150 x 110mm
Weight Apex. 2.9 Kgs
Warranty One Year

OVER HEAD IONIZER (Model: OHI-01)
The generation and accumulation of unwanted electrostatic charges, both surface and airborne, poses a serious problem in various industries and laboratories. For instance, static charges can create havoc with sensitive equipment and electronic components. This Over Head Ionizer is designed to neutralize your ESD work-station or ESD protected area with a stream of ionized air. It does what Wrist straps, conductive mats & ESD Laminates cannot do- i.e remove static charges from non-conductive objects and surfaces. The Over Head Ionizer uses three/four small fan to produce airflow. High voltages are generated out of the supply line, HV voltage is applied to stainless steel ion emitter points. These points produce intense alternating polarities, ionizing the air instantly from the fan airflow. The Over Head Ionizer is designed for when handling sensitive electronic components where electrostatic discharge is a problem. The unit can also be used where static electricity causes problems such as; attraction of drift to product, misalignment of small parts due to electrostatic “jumping” and undesirable adhesion of plastic films due to electrostatic charge.

Specifications
Air flow 90 CFM
Noise Level 43 dBA
Power Supply 210V – 250V AC/50Hz
Ionization Voltage +/- 6KV
Un Balance Voltage < +/- 100V
Construction Power coated MS cabinet
Dimensions 1220 x 200 x 120mm
Warranty One Year
