wrist strap and foot wear Combo Tester
wrist strap and foot wear Combo Tester

wrist strap and foot wear Combo Tester

Price 18999.0 INR/ Unit

MOQ : 1 Unit

wrist strap and foot wear Combo Tester Specification

  • Product Type
  • ESD testing
  • Material
  • Plastic, Metal
  • Application
  • ESD testing
  • Surface Resistance
  • 10^5 .10^9
  • Usage
  • Industrial
  • Output Voltage
  • 9 Volt (V)
  • Testing Function
  • button
  • Trigger Mode
  • ESD testing
  • Detection Method
  • Auto
  • Size
  • semi portable
  • Dimension (L*W*H)
  • 3 Foot (ft)
  • Weight
  • 5 Kilograms (kg)
  • Color
  • White, Yellow
  • Warranty
  • Yes


wrist strap and foot wear Combo Tester Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • FOB Port
  • N/A
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 100 Units Per Month
  • Delivery Time
  • 7 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • in bubble wrap and box
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2024 CERTIFIED


About wrist strap and foot wear Combo Tester

Combo Tester

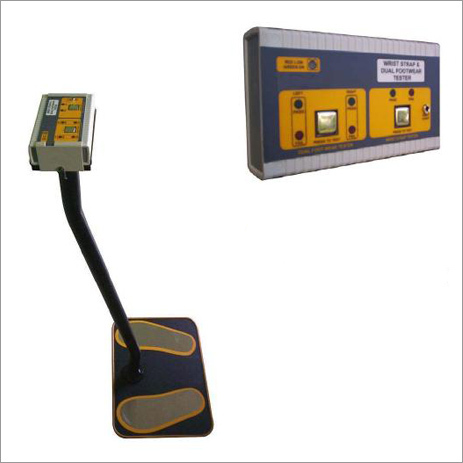

The Wrist strap Cum Dual Footwear tester is a jig type arrangement to test the validity of ESD Wrist strap & foot wears. The instrument measures Independent test simultaneously for right foot, left foot and wrist strap at the same time. Other Footwear testers can only measure two foot at a time, or the combined resistance of both foot. The wrist strap cum Dual Foot Tester reduces the testing time by half, and offers the operator a visual and audible measurement of Pass or fail of both foot and wrist strap before entering the EPA.

Operation of Wrist Strap

Connect the wrist strap cord to the instrument with the strap on the wrist; press gently on the metal sensor of the wrist strap tester. The instrument comes on automatically when this is done. The operator can check whether the resistance of the wrist strap falls within the acceptable range (0.75 to 10 Meg ohms), This is indicated by green (pass) LED lighting up.

Operation of foot wears

Simply stand on the two stainless steel footprints on the foot plate and push the Dual foot wear tester press to test button. The instrument comes on automatically when this is done. The operator can check whether the resistance of the Foot wears falls within the acceptable range of 0.75 to 100 Meg ohms, this is indicated by green (pass) LED lighting up.


Wrist Strap PASS Range

0.75 to 10 Meg Ohms

Foot Wears PASS Range

0.75 to 10 Meg Ohms

Indications

Pass - GREEN LED

LOW & High Fail - RED LED with Buzzer sound

Test actuation

By pressing metal sensor plates

Accuracy

+/-10%

Power Supply

9V Battery

Battery Status

By Dual color LED

Dimensions

Instrument: 160 x 95 x 40 mm

Foot plate: 470 x 360 mm

Height: 1000 mm

Weight

5 Kg

Calibration

Recommended every 12 months

Warranty

12 Months only for Instrument

Accessories

9V Battery.
